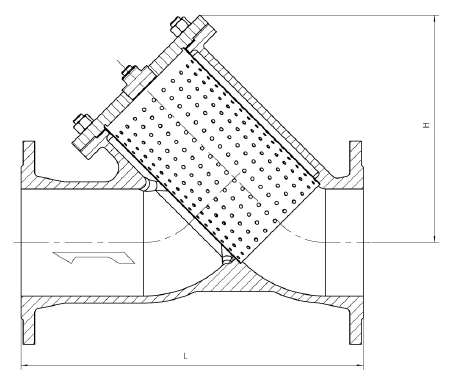

IYS01

Y-Strainer
Availability:
Quantity:
Product Name             Y-Strainer IYS01
Patt. No.                    IYS01
Working Pressure

16bar(DN50-400)

25bar(DN50-300)

Working Temperature -10°C~120°C
Standards                    BS7350-1990
Flange Types

EN1092-2 PN10/PN16/PN25

ANSI B16.1 Class 125,ANSI B16.2 Class 250

JIS10K/16K

Face to Face                EN558 basic series 1

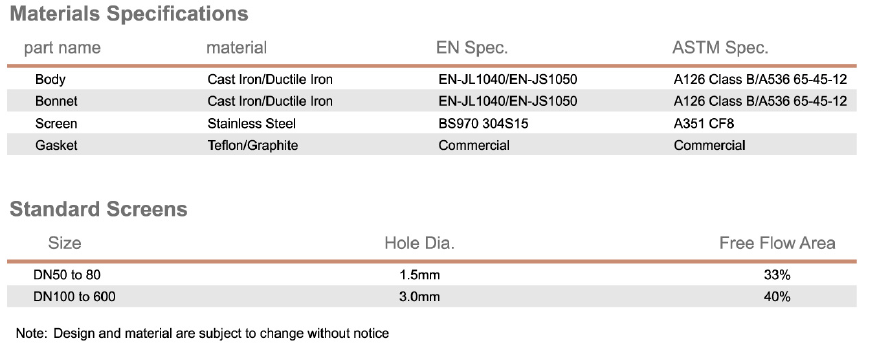

301

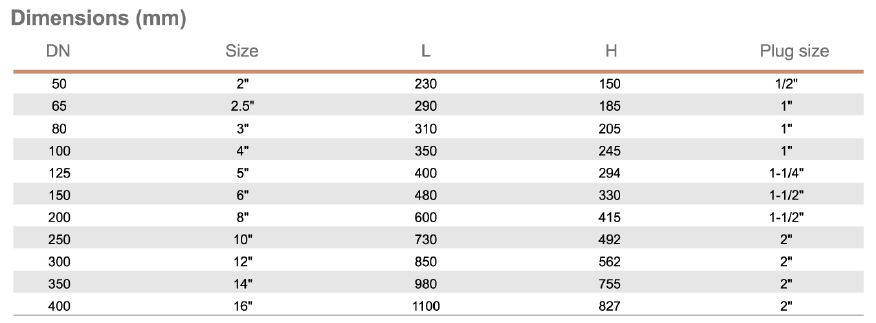

302
