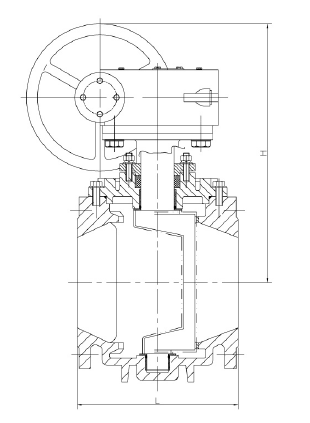

IEPV01

Eccentric Plug Valve
Availability:
Quantity:
Inquire Add to Basket

Product Name             Eccentric Plug Valve IEPV01
Patt.No. IEPV01
Working Pressure

16bar
Working Temperature

-10°C~120°C for EPDM coated plug

-10°C~82°C for NBR coated plug
Flange Types

EN1092-2 PN10/PN16

ANSI B16.1 Class 125

JIS7.5K/10K

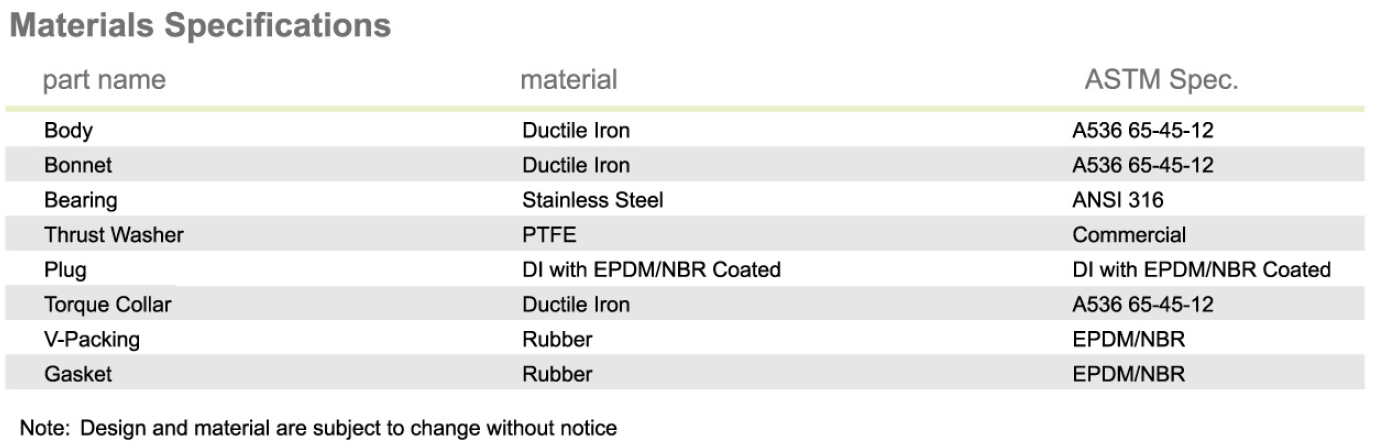

110201


110202
